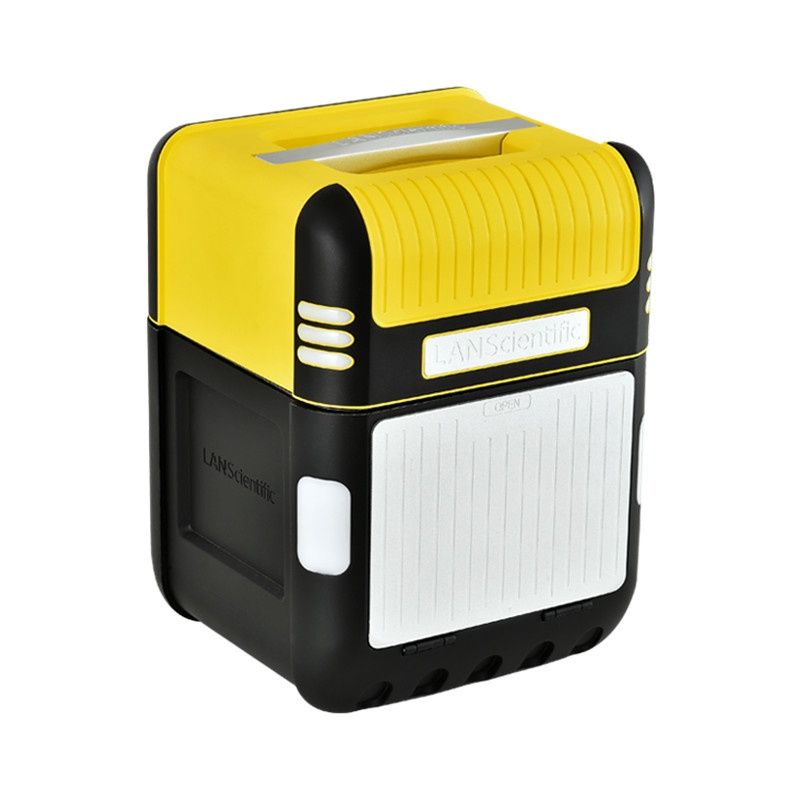

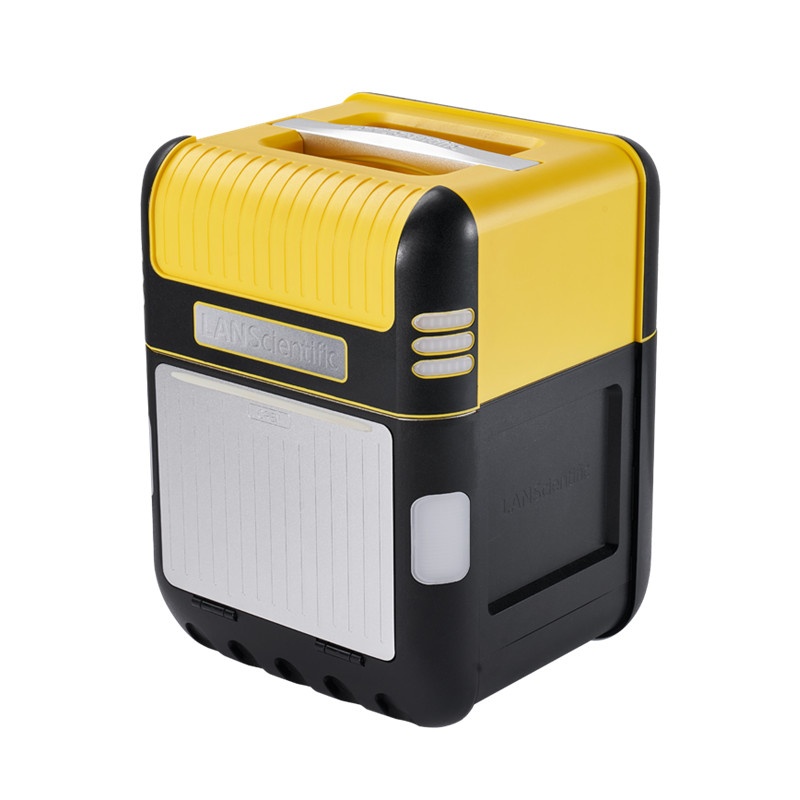

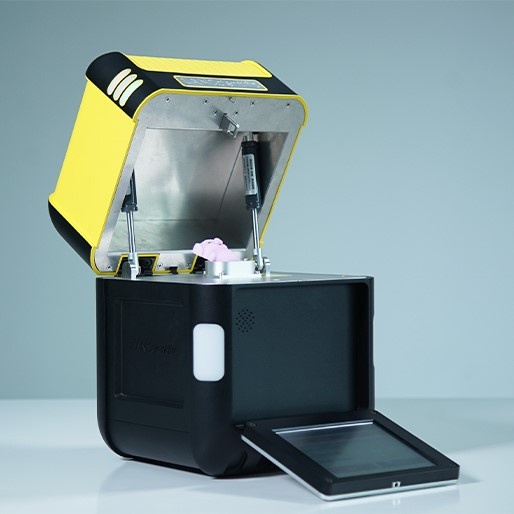

Product name : PeDX OIL/PeDX OIL+/PeDX OIL C3 portable XRF spectrometer oil analyzer
Product No. : PeDX OIL/PeDX OIL+/PeDX OIL C3
←[Previous Product]              [Next Product]→

  Details:
Product Description
PeDX OIL is a portable XRF analyzer that provides sulfur analysis methods for the energy industry. It can analysis of lubricating oil, diesel fuel, kerosene, jet fuel, other distillation oil, volatile oil, residual oil, hydraulic oil, crude oil, unleaded gasoline, ethanol gasoline, biodiesel, and other similar elements content in petroleum products such as oil and wear elements, pollutants, and the existence of the sulfur content within a few minutes . Analysis of sulfur content in safe, high-quality liquid, solid or gas samples can be carried out elsewhere where oil products are used.

Technical Parameters
Weight 4.1KG
Size 200×200×268mm(L×W×H)
Size of Sample Room 170×130×60mm(L×W×H)
Excitation source Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target
Detector

BOOST Si-pin/SDD

Operation System

Based on the I. MX 6 Quad, quad-core Cortex-A9 processor

Dedicated analytics operating system, 32GB of system memory

Data Processing

Built-in 32GB storage

USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument

Target

W/Ag/Rh(Optional)

Resolution

<136eV

Data Transfer

USB, Bluetooth, 4G

Operating Ambient Temperature

-20℃~50℃

Operating Ambient Humidity

10%~90% relative humidity, non-condensing

Display

5.7-inch absorbable color touch screen display

Test Time

User customize

Optional

Built-in 5 million pixel high-definition camera

Language

Chinese, English, etc.

Air mode

Air mode, helium mode, vacuum mode (optional)
