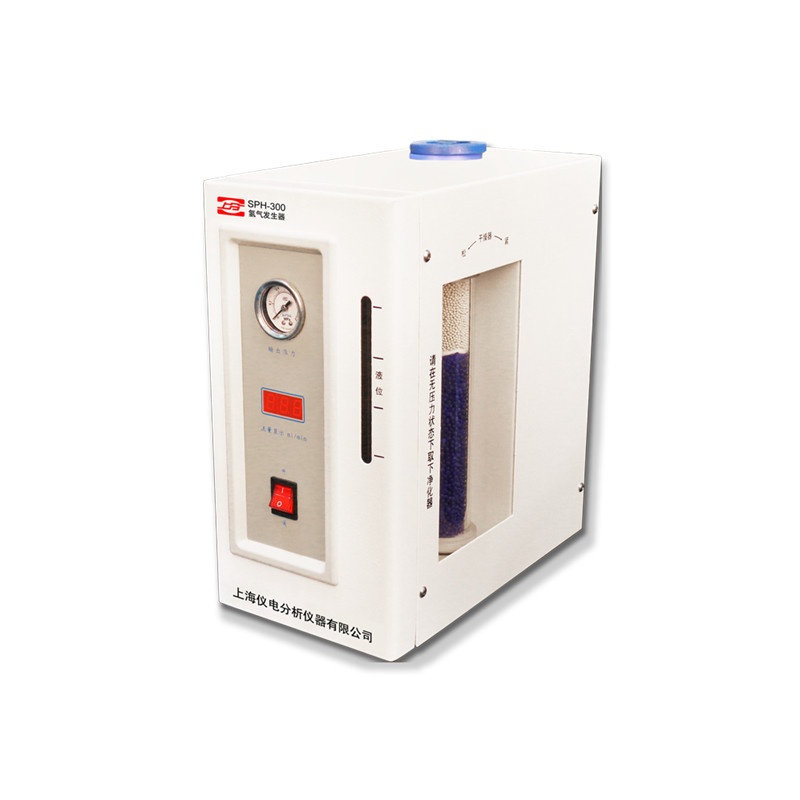

Product name : SPH-300 Hydrogen Generator
Product No. : SPH-300
←[Previous Product]              [Next Product]→

  Details:
Product Overview
SPH-300 hydrogen generator is a special accessory of gas chromatograph. It is easy to operate, safe and reliable. It can add alkali at one time. For daily use, only need to add distilled water and turn on the power switch to generate hydrogen.


Main Features
● Easy to operate, safe and reliable, one-time addition of alkali, daily use only need to add distilled water, turn on the power switch to produce hydrogen.
● All use unrepaired steel pipe gas circuit (electropolishing, ultrasonic cleaning).
● With overvoltage protection device, two-stage purification.
● The unique anti-return device ensures that the instrument has no liquid back phenomenon.
● Barrel-type electrolytic cell, the electrolytic material is made of imported precious metals, which can effectively improve the electrolytic efficiency, keep the cell temperature constant, and improve the service life of the electrolytic cell.
● Stable output flow, automatic tracking, no attenuation of purity, can be used continuously.

Technical Parameters
● Hydrogen purity: >99.999%
● Hydrogen flow: 0 ~ 300mL / min
● Output pressure: 0 ~ 0.4Mpa (factory setting 0.3Mpa)
● Pressure stability accuracy: ±0.005MPa
● Environmental conditions: Ambient temperature: 40℃; relative humidity: ≤85%; no large amount of dust and corrosive gas.
● Power supply: AC220V±10%, 50Hz±5%, 200W
● Instrument size: 320mm×180mm×370mm
● Weight: 10kg
