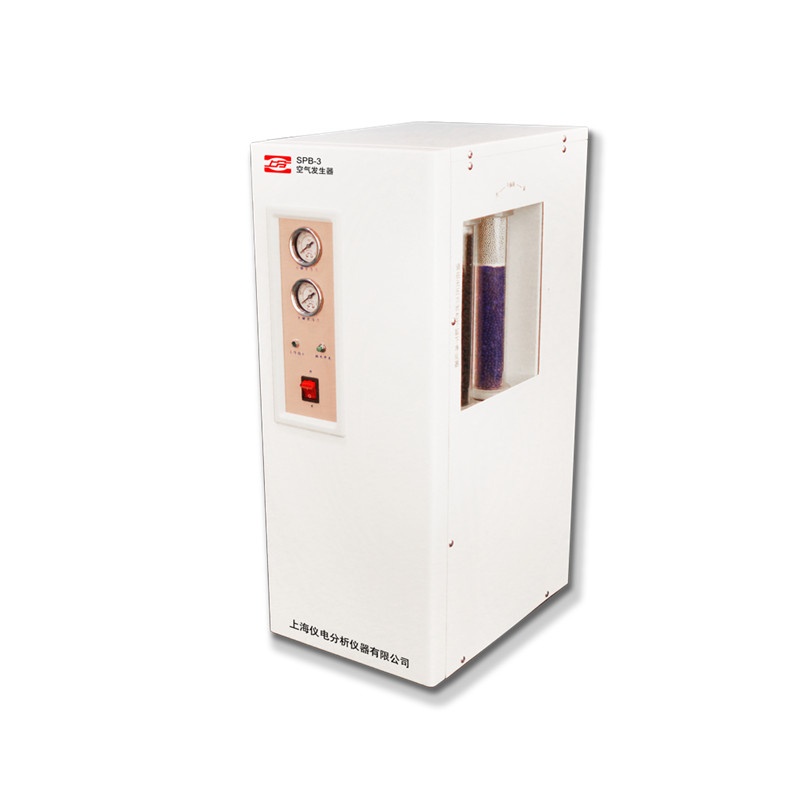

Product name : SPB-3 Oil Free Air Generator
Product No. : SPB-3
←[Previous Product]              [Next Product]→

  Details:
Product Overview
SPB-3 oil-free air generator is an optional accessory for gas chromatograph. It is equipped with HL-A device, which can automatically absorb and remove hydrocarbons, esters, oils, etc. in the air, improve air quality, and require no maintenance.


Main Features
● Equipped with HL-A device, which automatically absorbs and removes hydrocarbons, esters, oils, etc. in the air, improves the air quality, and requires no maintenance.
● Using stainless steel storage tank, automatic drainage, will not pollute the test.
● All use stainless steel pipe gas circuit (electropolishing, ultrasonic cleaning).
● Low pressure start, effectively improve compressor life.
● Small size and low noise.
● Double filters, two-stage voltage stabilization, high output pressure precision and perfect protection measures.

Technical Parameters
● Relative hydrocarbon concentration of output air: <0.1ppm
● MAX input air relative hydrocarbon concentration: <100ppm
● Output pressure: 0 ~ 0.5Mpa (factory setting 0.4Mpa)
● Output flow: 0 ~ 2000mL/min
● Ambient temperature: 0 ~ 40℃
● Use ambient humidity: <85%
● Instrument size: 260mm×360mm×665mm
● Maximum power: 560W
● Weight: 27kg
