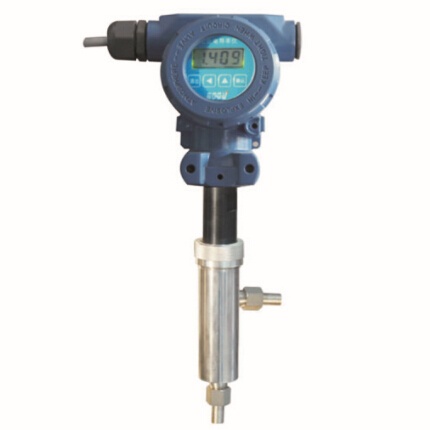

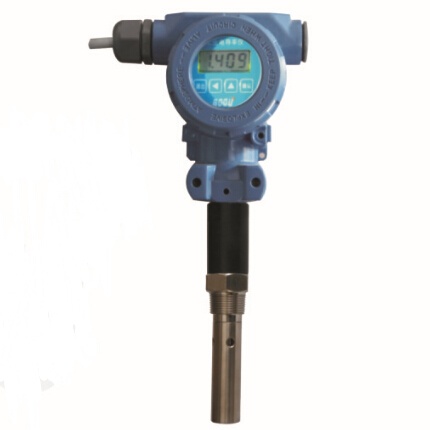

Equipped with the latest single chip microcomputer, this conductivity meter is characterized by its low power consumption, less peripheral components and high performance, stability and reliability.

It adopts the LCD display. When you push the keys, the conductivity meter can display the conductivity and temperature values respectively.

Three types of electrode constants can be used in this meter.

The meter has power-failure parameter protection.

The four levels of measuring ranges can shift automatically.

It is available with automatic temperature compensation.

4~20mA isolated current output.

1. Working conditions

a. Ambient temperature: 0~55℃

b. Relative humidity:＜85%

c. Power supply: 24 VDC±5%

d. Solution temperature tested: 5~55℃

2. Conductivity measuring range: K=0.01 electrodes: 0~20.0 µS/ cm

                                                     K=0.1 electrodes: 0~200.0 µS/ cm

                                                     K=1.0 electrodes: 0~2000 µS/ cm

                                                 Temperature measuring range: 0-100℃

3. Intrinsic error of conductivity measurement: ±1%F.S.

Intrinsic error of temperature measurement: ±0.5℃

4. Temperature compensation range and influence error: 5~55℃, ±0.5%F.S.

5. Isolated current output and intrinsic error: 4~20mA (RL ≤500Ω) ± 0.5%F.S.
