YANTAI STARK INSTRUMENT CO., LTD.

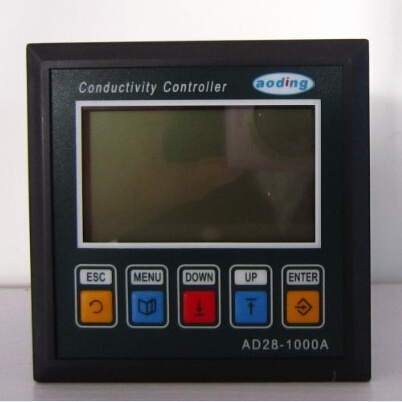

Product name : Conductivity controller
Product No. : AD28-1000A
←[Previous Product]

  Details:
Overview
Widely used in online monitoring of the conductance values in the chemical industry, metallurgy, water treatment, pharmaceutical, biochemical, electronics, electroplating, printing and dyeing, chemical, food and water.


Features

LCD display, function stable. Simple operation and excellent performance of the test.
CARCAR microchip, 96 × 96 standard case.
Isolated signal output, there is no interference between input signal and output signal.
EEPROM memory, without back-up battery, the data is not lost after power failure.
High-performance amplifiers in circuit. Automatically scale switch. High accuracy, low temperature drift.


Technical Parameters

Power supply

AC220V±22V, 50Hz±1Hz

Input sensor model

The conductivity sensor can be with constant value as below:

0.01,   0.1,   1.0,  10.0,  30.0  (cm-1)

Measurement range

0~20μs/cm, 0~200μs/cm, 0~2000μs/cm, 0~20000μs/cm

0.0 ~ 80 .

Resolution

0.01μs/cm

0.1

Accuracy

0.1μs/cm ± 1 digit

0.1 ± 1 digit

Display type

LCD.

Transmission signal

4 ~ 20mA isolated output.

Alarm output

2 separate ON OFF relay output: High, Low, programmable.

Dimension

96×96×135 mm (H×W×D)

Protection

IP64

Weight

1.0Kg



Photos
