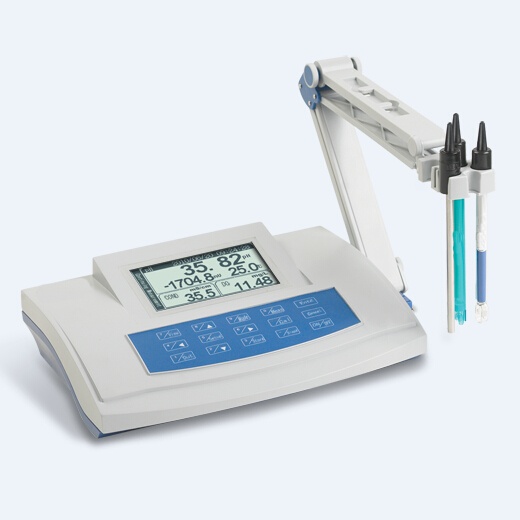

Product name : DZS-706 Multi-Parameter Water Quality Analysis Meter
Product No. : DZS-706
←[Previous Product]              [Next Product]→

  Details:
Functions
It can measure pX/pH, ORP, conductivity, TDS, salinity, Resistivity, dissolved oxygen, saturation and temperature.
It adopts LCD display and Chinese operation interface.
It has manual/automatic temperature compensation.
It provides zero oxygen and full scale calibration.
When the meter measures conductivity, it can switch frequency automatically to guarantee measuring accuracy.
It has power failure protection functions.


Technical Parameters

1. Measuring range:
                                pH/pX: (-2.00~20.00)pH/pX
                                ORP: (-1999.9~1999.9)mV
                                Conductivity:0.000μS/cm~199.9mS/cm
                                Resistivity: 0.00Ω.cm~20.00MΩ.cm
                                T D S: 0.000 mg/L~100g/L
                                Salinity: (0.00~8.00)%
                                Dissolved oxygen: (0.00~19.99)mg/L
                                Dissolved oxygen saturation: (0.0~199.9)%
                                Ion concentration: (0~19990), unit: ug/L, mg/L, g/L, mol/L, mmol/L
                                Temp: (-5.0~105.0)℃
2. Resolution:
                      pH/pX: 0.01pH
                      ORP: 0.1 mV
                      Conductivity: 0.001μS/cm
                      Resistivity: 0.01 Ω.cm
                      TDS: 0.001 mg/L
                      Salinity: 0.01 %
                      Dissolved oxygen: 0.01mg/L
                      Saturation: 0.10%
                      Temp: 0.1℃
3. Accuracy:
                      pH/pX: ±0.01pX±1 digit
                      ORP: 0.1%FS
                      Conductivity: ±1.0%F.S.
                      Resistivity: ±1.0%F.S.
                      TDS: ±1.0%F.S.
                      Salinity: ±2.0%
                      Dissolved oxygen: ±0.30mg/L
                      Dissolved oxygen saturation: ±10.0%
                      Temp: ±0.3℃±1 digit
4. Input impedance>3×1012Ω
5. Dissolved oxygen response time<=45s(90% respond at 20°C )
6. Automatic temperature compensation range:
                                                                          pH:(0.0~100.0)℃
                                                                Conductivity: (0.0~100.0)℃
                                                                          Dissolved oxygen: (0.0~40.0)℃
7. Power: DC power supply (9V DC, 800mA, inside-positive and outside-negative)
8. Dimension(mm): 280×215×93
9. Weight: 1Kg

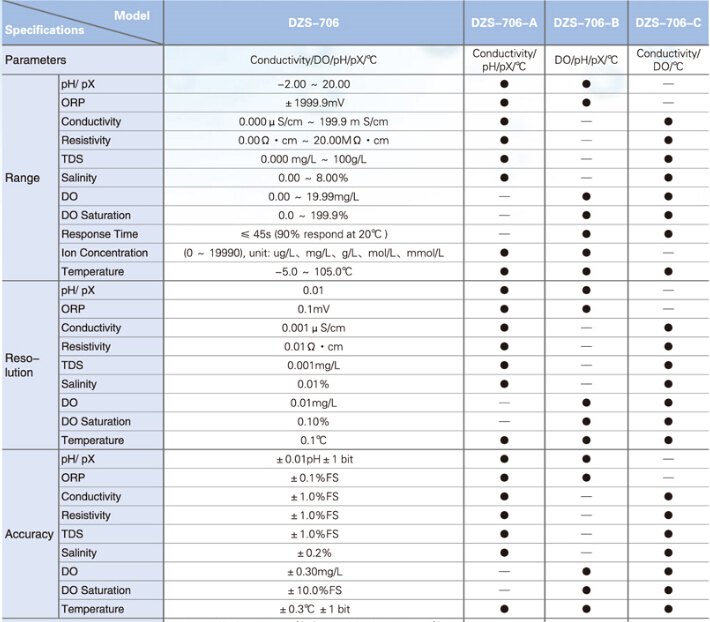

DZS-706 Series Comparison

Model

Specifications

DZS-706

DZS-706-A

DZS-706-B

DZS-706-C

Measuring
parameters

conductivity
dissolved oxygen
pH/pX
temperature

conductivity
pH/pX
temperature

pH/pX

dissolved oxygen
temperature

conductivity

dissolved oxygen
temperature
