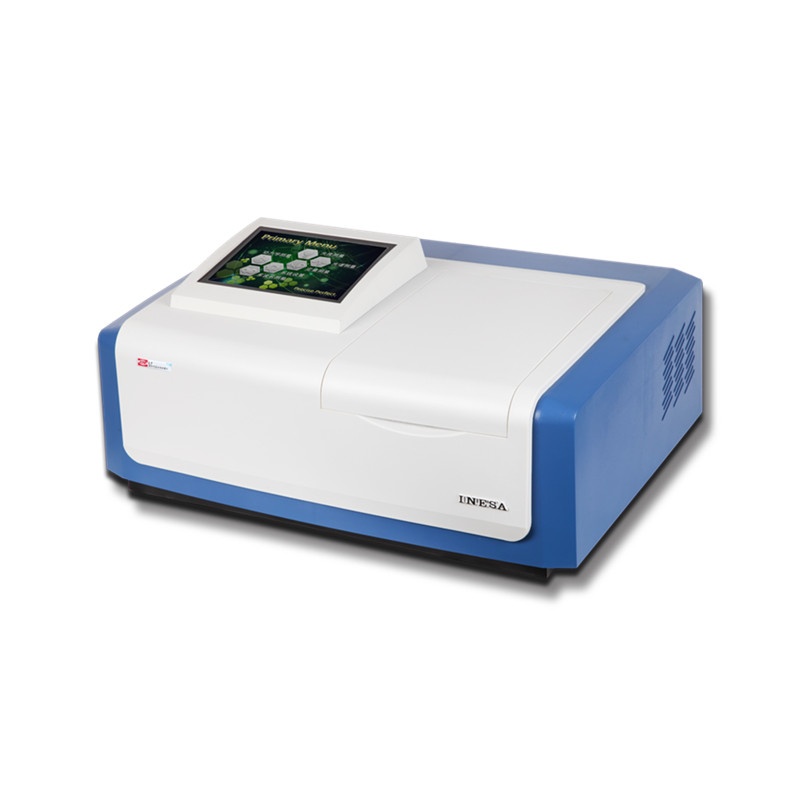

Product name : L3S Split Beam VIS Spectrophotometer
Product No. : L3S
←[Previous Product]              [Next Product]→

  Details:
Product Overview

L3S Split Beam VIS Spectrophotometer survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices. and blazed holographic gratings. They have outstanding test precision and very competitive prices. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
● Full-spectrum scanning
● Linear regression
● Detailed spectrum scanning
● Concentration direct reading
● Time-based kinetics determination
● Peak / Valley detecting
● GOTO λ
● Multi-wavelength measurement


The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data. Therefore, it follows a fast initialization when power on.
The instrument can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.
With USB COM port the device can be connected to a PC, which can not only enhance theperformance in data testing and spectrum scanning, but also expand the memory to save more testing results.


Main Features

● Split beam optical system
● Automatic wavelength settings
● 8-inch multi color touch-screen
● Automatic 8 position cuvette holder
● Automatic zero and full scale adjustment
● Equipped with USB port
● Thermal plotter optional Software optional

Specificatons

Photometry:     Split Beam

Monochromator Type:    Czerny-Turner

Focal Length:    160mm

Grating:    1200 lines/mm

Detector:     Silicon Photocell

Spectrum Bandwidth:    1.8nm

Wavelength Setting:     8-inch color touch-screen

Wavelength Range:    325-1100nm

Wavelength Accuracy:    ±0.5nm

Wavelength Repeatability:    ≤0.2nm

Scanning Speed:    Fast-Medium-Slow

Stray Light  :     ≤0.03%T( at 220nm NaI, 360nm NaNo2 )

Photometric Range:     0.0-200.0% T

-0.301-4.000 A

0.000-9999 C

Photometric Accuracy:    ±0.5% T

  ±0.002 Abs (0-0.5A)

  ±0.004 Abs (0.5-1A)

Photometric Repeatability:    ≤0.2% T

     0.001 Abs (0-0.5A)

        0.002 Abs (0.5-1A)

Baseline:     ≤±0.002 A (335-1090nm)

Noise:    100%Tnoise≤0.2%(T)  0%Tnoise≤0.1%(T)

Drifting:    ≤0.0009 Abs/h (at 500nm after 2h warm up)

Power:    AC220V±22V 50Hz±1Hz, 120W

Packaging Size:    710mm X 590mm X 505mm 0.21M3 40kg





Standrad Accessories

● Operation manual 1
● Glass cuvette 1cm 4pcs
● Quartz cuvette 1cm 2pcs
● Power cable 1
● Fuse 2pcs
● Cuvette holder 10mm

Optional Accessories

● UV WIN8 Spectrum data processing software
● Thermal Plotter
● Cuvette holder 100mm
● Cuvette holder 50mm
