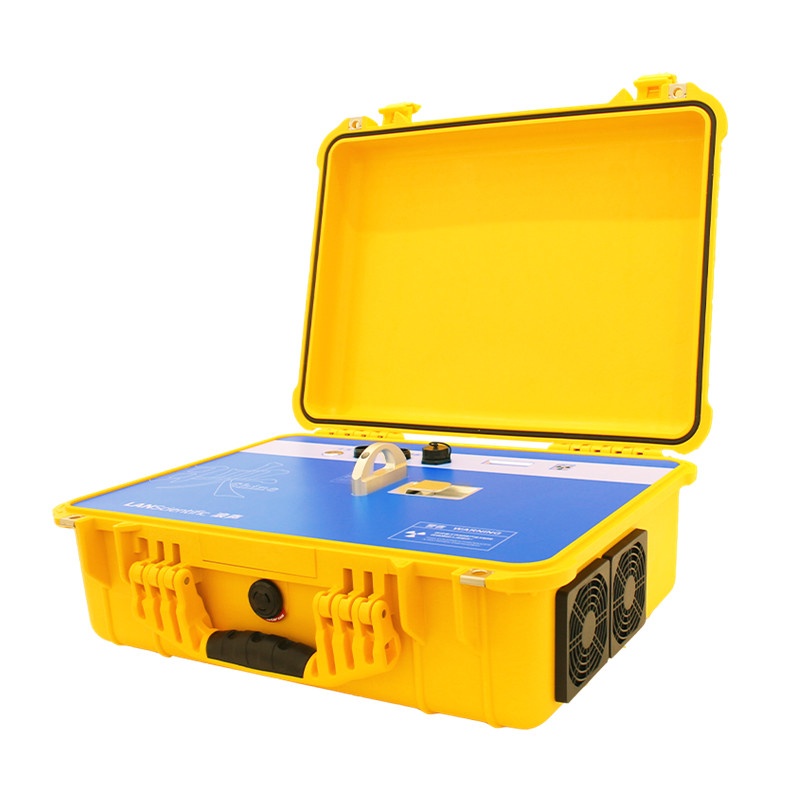

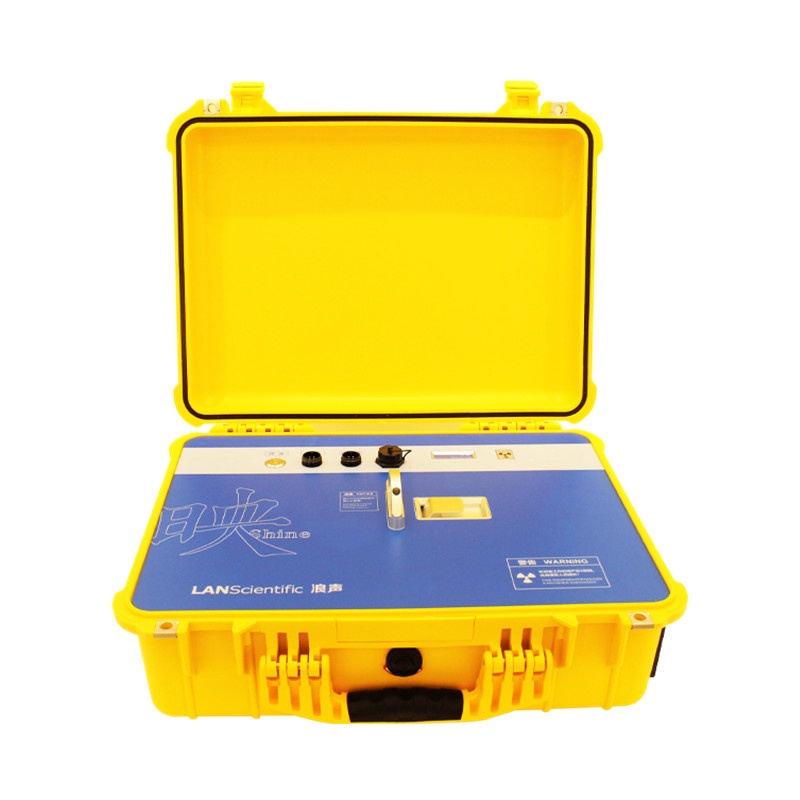

Product name : SHINE D100 portable XRD analyzer X-ray diffractometer
Product No. : SHINE D100
←[Previous Product]              [Next Product]→

  Details:
Product Description
SHINE portable X-ray diffractometer is a portable X-ray diffractometer combining XRD, XRF and computer software technologies. The samples by X-ray diffraction instrument, analysis of the diffraction pattern, material with material composition, internal information such as atomic or molecular structure or form (material ingredient, the secondary ingredients or trace elements of the crystal phase ID information), it has a simple sample preparation, no pollution, quick, high measurement precision, can get a lot of information about the integrity of the crystal, It is the main method to study the phase and crystal structure of matter.

Technical Parameters
XRD resolution 0.2°@2θ FWHM
Scope of XRD 5-55°2θ
The detector 2000 X 256 pixel, 2d, level 3 Pelter refrigeration CCD
X-ray tube target Cluster microfocal spot X-ray tube, Cu or Co, Cr, Fe, Ni, Mo, Ag, W target (optional according to test sample)
X-ray tube voltage Maximum 50kV, 0-50kV adjustable
X ray tube power Maximum 50W, 0-50W adjustable
XRF energy resolution 127eV@8keV
XRF detection range Mg—U
Cooling Method Air Cooling
Sample particle size Sample particle <150um (100 mesh sieve)
Sample weight ~ 20mg
Working temperature  -10°C-35°C
Weight 15KG
The power supply Lithium ion battery or power adapter
Size 500×400×188mm(L×W×H)
CrystalX analysis software language Chinese, English and other languages
