Product name : YANG 700F XRF spectrometer food heavy metal analyzer
Product No. : YANG 700F
←[Previous Product]              [Next Product]→

  Details:
Product Description

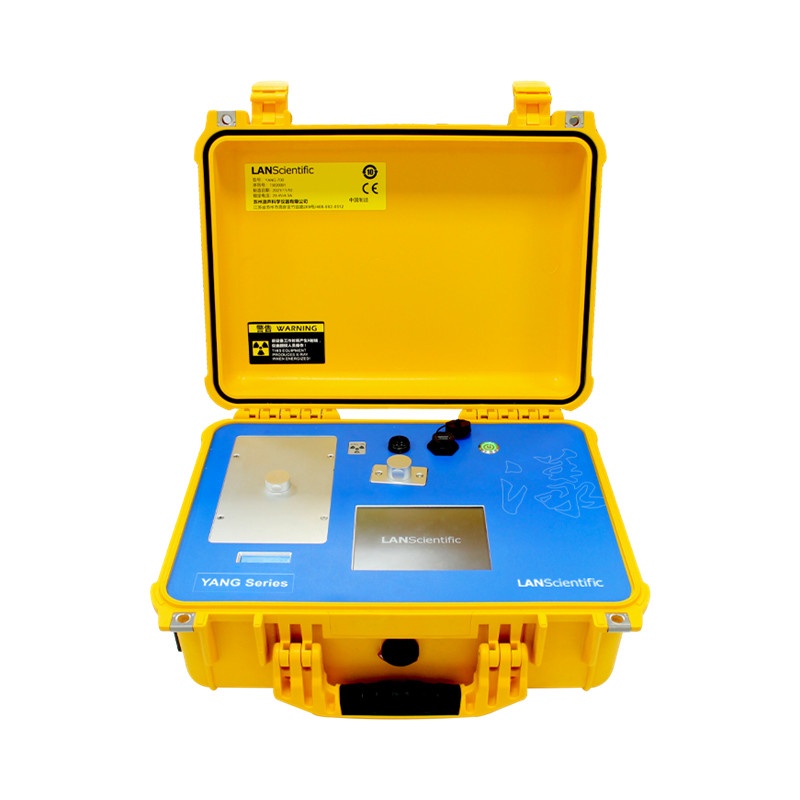

YANG 700F food heavy metal rapid analyzer is an XRF analytical instrument specially launched in the field of food security, used for rapid detection of cadmium, lead, mercury and other heavy metal elements in food. Its integration of LANScientific years of XRF research and development technology, crystal grating spectroscopic technology and basic parameter method and a number of high-end technologies, with small and portable, simple operation, fast and accurate advantages, can quickly improve the efficiency of on-site detection, escort for food security.

Technical Parameters
Weight 12KG
Size 418 × 330 × 173mm(L×W×H)
Excitation source Air cooled X-ray tube
X-ray tube target Ni, Mo, Ag, W target (optional)
X-ray tube voltage

The maximum is 50kV, and the equivalent rate of X-ray radiation measurement is less than 0.2μSv/h

X ray tube power

Maximum 50W, adjustable 0-50W

Crystal Hyperboloid curved crystal
The detector

Stage 2 Peltier refrigeration SDD detector

Display

5.7-inch, industrial grade color touch screen

Scope of element Mg—U
The battery Equipped with lithium battery, can continuously test the number of samples ≥50, the laboratory environment can also be used through the adapter power supply.
Working temperature -20℃~50℃
Working humidity

20%~90%RH

Data output

USB, Bluetooth, GPS, 4G communication

Measuring time 30-1800 - s optional
Resolution

The optimal 125 ev

Analytical Systems Language

Chinese, English and other languages

Analysis system language

Dedicated Analytics level Android embedded operating system

Based on the I. MX 6 Quad quad-core Cortex-A9 processor

80MHz ADC digital pulse processor

4096 MCA channel, 32 GB memory
