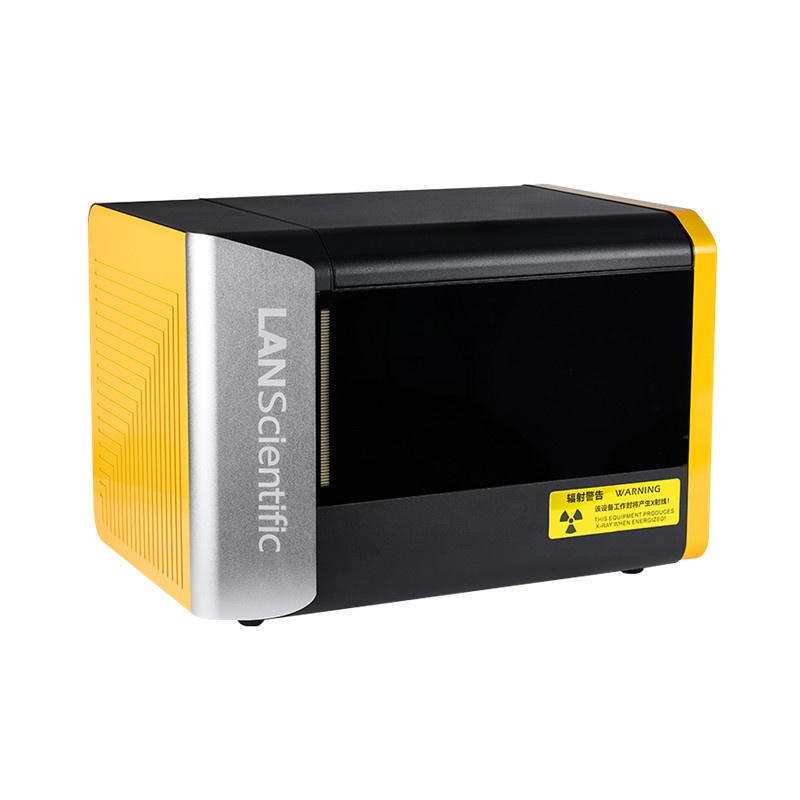

Product name : ScopeX ASH 980CS/ScopeX ASH 980CSR benchtop XRF spectrometer coal ash analyzer
Product No. : ScopeX ASH 980CS/ScopeX ASH 980CSR
←[Previous Product]              [Next Product]→

  Details:
Product Description
ScopeX ASH analyzer is designed for coal ash composition analysis in coking enterprises. Equipped with intelligent software and high-quality hardware, the ScopeX ASH ASH analyzer features wide linear range, fast analysis, high reproducibility and high accuracy. It is widely used in cement, iron and steel smelting, mineral development smelting, refractory materials, powder metallurgy, petroleum exploration, logging analysis, rare earth materials, environmental monitoring, non-ferrous metals, food, agriculture, scientific research institutes, universities, industrial and mining enterprises and other fields.

Technical Parameters
Test object Solid, liquid, powder
Range of element Na—U
Sample room size 330×290×78mm(L×W×H)
Sample weight range 0-2.5KG
Cover open Automatic
Mainframe size 570×400×400mm(L×W×H)
Mainframe weight 64KG
X-ray tube High power side window X-ray tube
Voltage Up to 50KV
Current Maximum 1mA
Cooling Method Air cooling
Detector SDD
Test environment Air mode、Helium mode、Vacuum mode
Sampling Method Hand sampling、Autoinjection
Sample Observation 5 megapixel HD industrial camera
PC(CPU) CPU is I3-7100 with the same main frequency or above
RAM DDR4 4 GB memory or above
ROM 1TB HDD or 256GB SSD or above
OS Windows 10
Temperature conditions 10°C~35°C
Relative humidity 40%-70% (No condensation)
Power supply 220VAC
Rated power 600W
