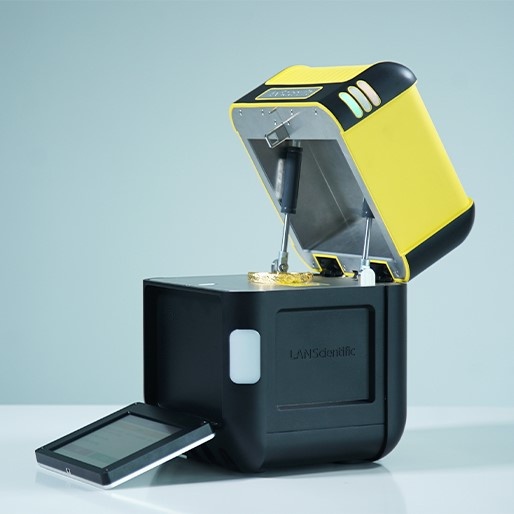

Product name : PeDX GOLD 1/PeDX GOLD 2 portable XRF spectrometer precious metal analyzer
Product No. : PeDX GOLD 1/PeDX GOLD 2
←[Previous Product]              [Next Product]→

  Details:
Product Description
The PeDX GOLD Precious Metal Analyzer has become a widely used, popular and reliable method for determining the elemental composition and purity of precious metals. Compared with other testing methods, using an analyzer to analyze precious metals is a faster and more economical method of nondestructive testing. It can be used for on-site Karat identification of gold, identification of gold-plated samples, and accurate analysis of the chemical composition of platinum, silver and other precious metal alloys.

Technical Parameters
Weight 4.1KG
Size 200×200×268mm(L×W×H)
Size of Sample Room 170×130×60mm(L×W×H)
Excitation source Up to 50kV, 200uA X-ray tube, upper excitation power 4W
Detection Range Mg—U
Detector

BOOST Si-pin/SDD(Optional)

Operation System

Based on the I. MX 6 Quad, quad-core Cortex-A9 processor

Dedicated analytics operating system, 32GB of system memory

Data Processing

USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument

Target

Ag/W/Rh (Optional)

Resolution

<136eV

Operating Ambient Temperature

-20℃~50℃

Operating Ambient Humidity

10%~90% relative humidity, non-condensing

Display

5.7-inch absorbable color touch screen display

Test Time

User customize

Optional

Built-in 5-megapixel HD camera

Lauguage

Chinese, English, etc
